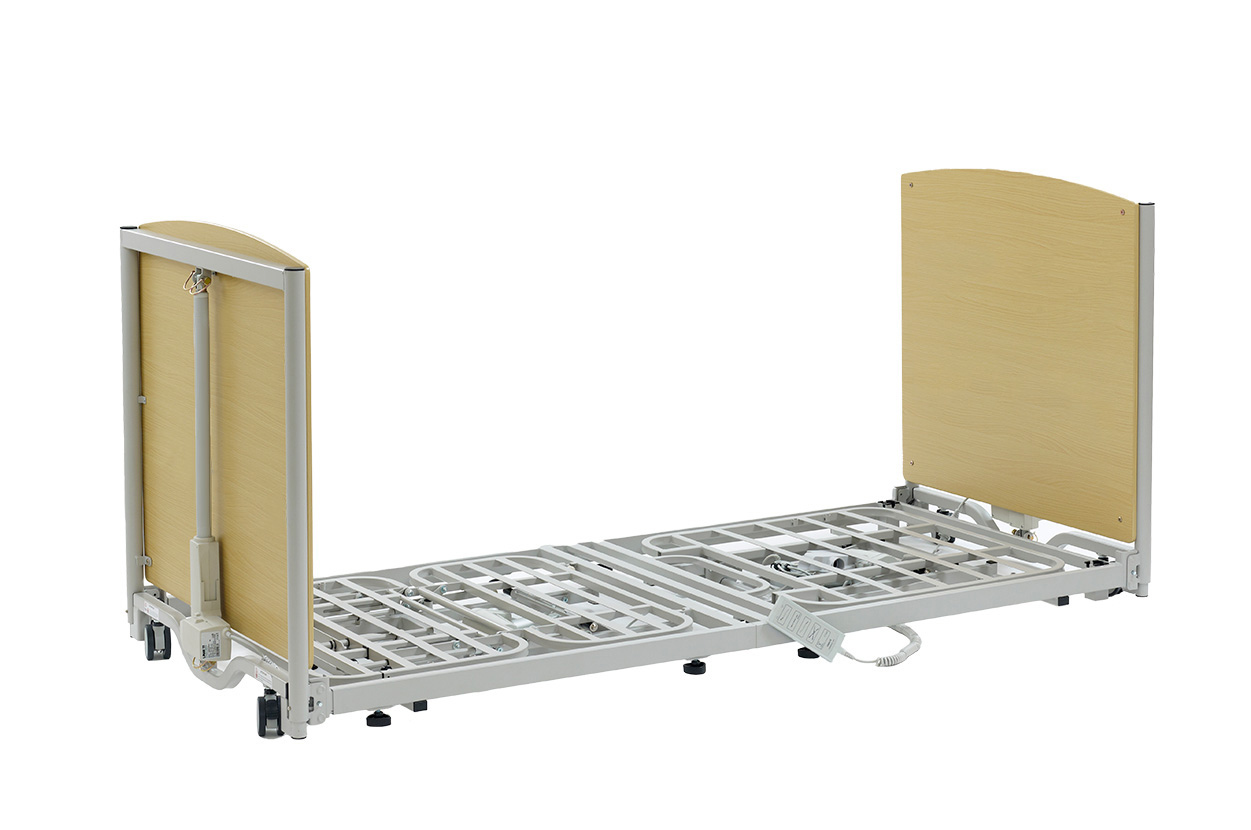

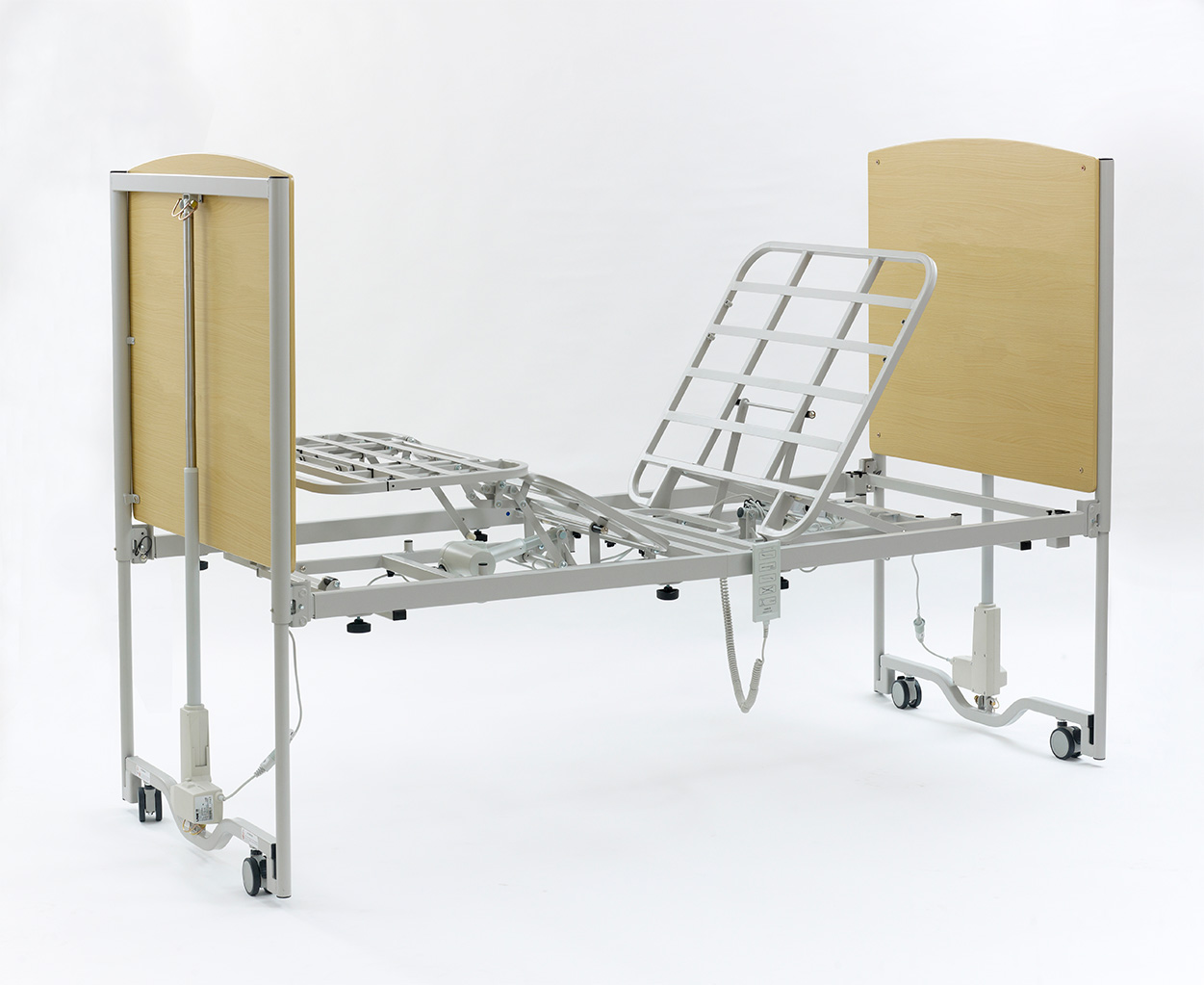

Apollo Super Low Single Panel

The Apollo Super Low Single Panel is an electrically adjustable wooden bed with adjustable back rest and foot rest sections, offering an ultra-low platform height of just 10cm from the floor, which reduces the risk of injury from falling and make it suitable for use in all commercial environments.

It features an auto-regression function, ensuring minimal pressure is placed on the sacrum region when the bed is profiled. It is also includes an auto-contour function that allows for effortless positioning and prevents the patient from sliding down the bed. The easy to use handset features a safety stop mechanism to help prevent entrapment under the bed frame when lowering below 30cm. To continue lowering the bed to the optimum 10cm, the user must press a separate button. Additionally, this bed has the added benefit of an integral extending section that allows the bed platform to be lengthened by 15cm.

• Electrically operated backrest, height, tilt and knee break
• The hand control is simple to use, allowing users to operate the bed and adjust features according to their preference, while enabling caregivers to provide on-bed care without compromising their posture

• Safety stop mechanism to help prevent entrapment under the bed frame when lowering below 30cm

• Auto-regression function and Auto-contour function

• Using individually lockable castors enhances stability and safety (castor diameter: 7.5cm)

• Transport kit available for ease of transport and storage

• Fall safe crash mattress, lifting pole and bed lever are available

• Product Code: APH040
• Bed Dimensions: 220 cm x 103 cm (When the integral extension piece is used: 235 cm x 103 cm)
• Mattress Platform Dimensions: 198 cm x 88 cm (When the integral extension piece is used: 213 cm x 88 cm)
• Integral Extending Platform: 15 cm
• Bed Weight: 83 kgs (Headboard: 18 kg, Footboard: 18 kg, Bed frame: 47 kg)
• Maximum Weight Limit: 28.3 stone / 180 kg
• Maximum Height Position: 70 cm
• Lowest Height Position: 10 cm
• Height Adjustment: 60 cm (From 10 to 70 cm)
• Headboard Height from mattress platform: 83 cm
• Angle of Backrest: 70°
• Angle of Leg support: 35°
• Angle of Trendelenburg tilt: 10.8°
• Angle of Anti-Trendelenburg tilt: 10.5°
• Motor Brand : LINAK
