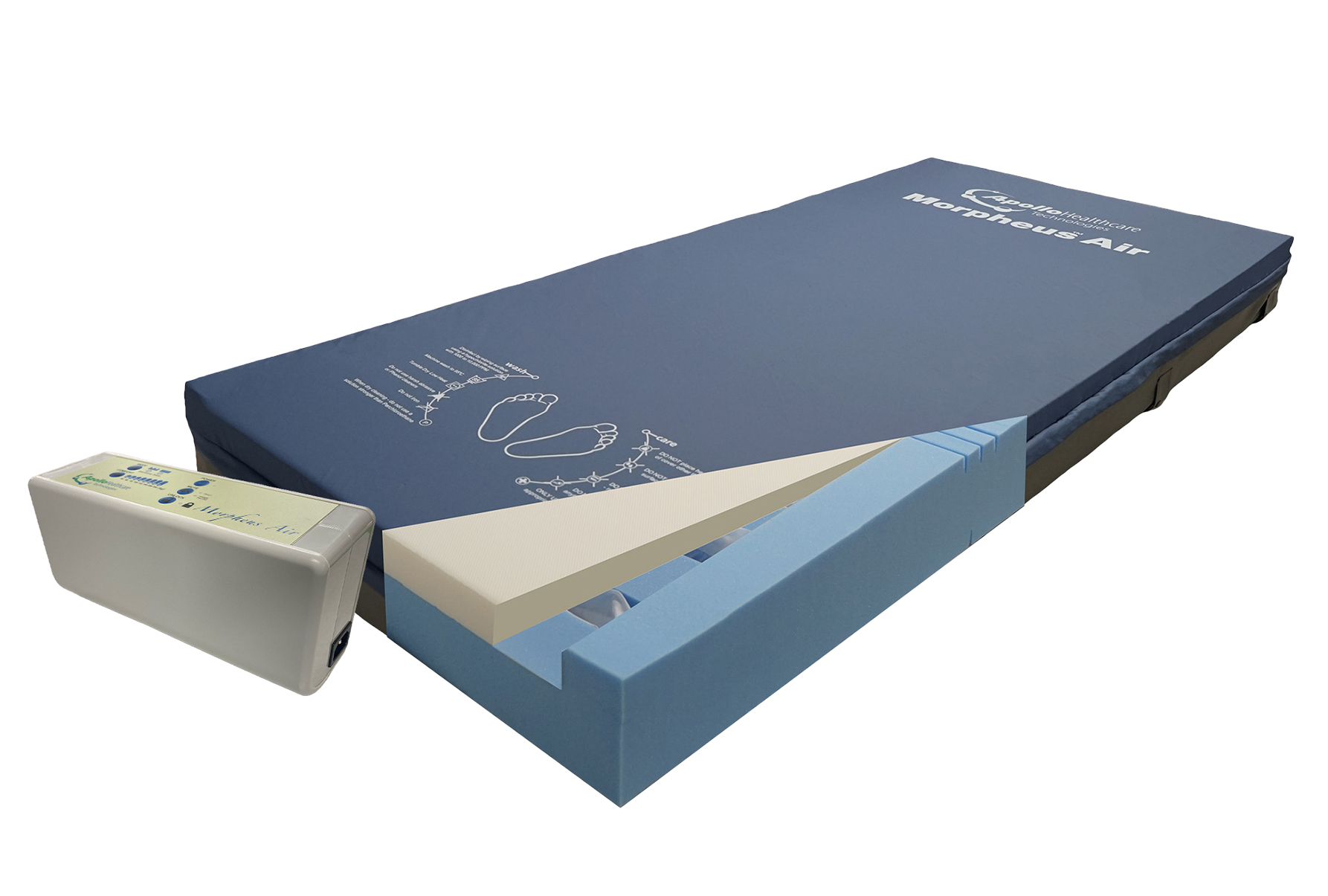

Morpheus Air™
The Morpheus Air hybrid replacement mattress has been designed for users considered to be at 'High to Very High Risk' of developing pressure ulcers.

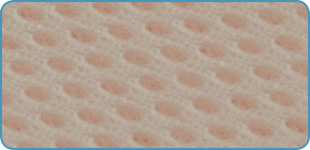

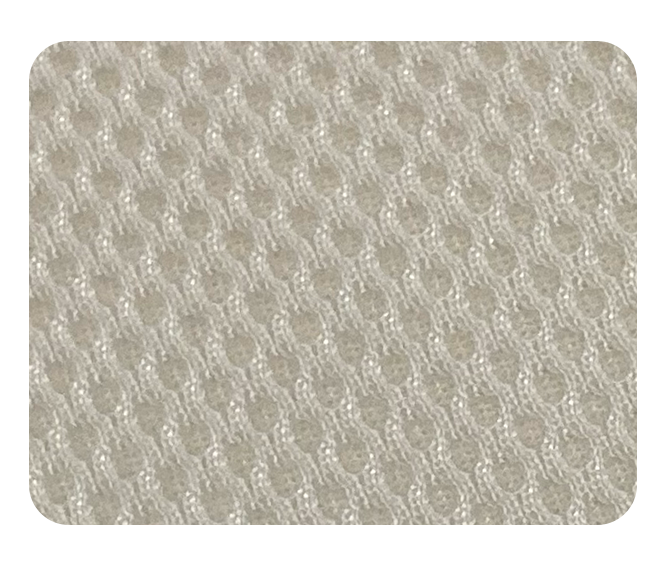

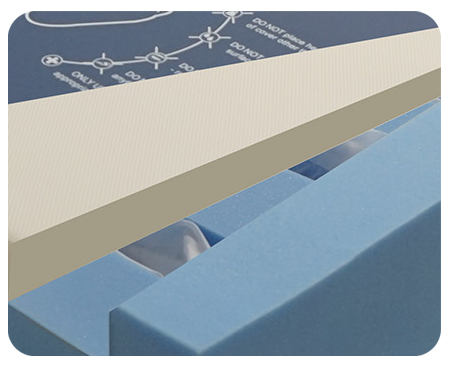

The Morpheus Air hybrid replacement mattress consists of a single set of support cells encased in a foam mattress, with a viscous foam topper and air spacer fabric, giving 30 times greater airflow. The 'High to Very High Risk' mattress also boasts a static and dynamic use and an easy to use pump that is both quiet and efficient, reducing the need for complex training.

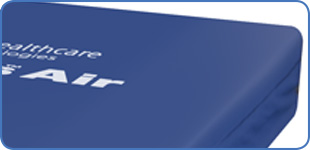

The 'Extreme Strikethrough Resistant Cover' is made from a chemically resistant polyurethane polymer, making it much more resistant to abrasion and damage.
After cleaning, the material reverts to its natural state very quickly, thus the time in which the cover is more prone to physical damage is significantly reduced. The cover material incorporates the key features required in a mattress cover. It is multi stretch, vapour permeable, waterproof, and high frequency welded, reducing the opportunity for accumulation of dust and liquid residues.
- The mattress can be used as both a static support surface and a dynamic system
- Full replacement and non-turn mattress system that reduces manual handling risks
- Designed for users at high to very high risk, or have existing tissue damage (pressure ulcer grade 1 to 4)
- Manual adjustment to user's body shape and position for optimum pressure care
- Dynamic therapy alternating action for lower interface pressures and gentle capillary stimulation
- Reinforced side walls and base offer stability and support which assists with patient transfers
- Humidity management to help prevent tissue breakdown and skin maceration through the spacer technology
- Smooth multi-stretch PU cover is both waterproof and vapour permeable, reducing shear and friction, and can be easily wiped clean or completely removed for laundering
- High frequency welded seams reduce the risk of fluid ingress, supporting infection control protocols
- The cover is clinically effective against bacteria/viruses, with proven resistance to MRSA
- Waterproof with high vapour permeability for improved infection control
- Fire retardant to Standards BS7175 Crib 5
- Clear and simple controls reduces need for complex training
- External air filters for easier maintenance
- Removable quick release cells and connectors for lower cost servicing
- Adjustable weight settings when used as a dynamic system
Product Code
|
APH166
|
APH166/120
|
Mattress Dimensions (inflated)
|
198cm x 88cm x 16.3cm
|
198cm x 120cm x 16.3cm
|
Mattress Weight
|
14kg
|
20kg
|
Max. Weight Limit
|
39 stone / 248 kg
|
50 stone / 317 kg
|
Min. Weight Limit
|
6 stone / 38 kg
|
- Risk Factor: High (Static) / Very High Risk (Dynamic)
- Cell Configuration: 10 individual cells
- Pump Dimensions: 28cm x 13.5cm x 9cm
- Pump Weight: 1.4 kg
- Pressure Range: 12 -26 mmHg
- Cycle Time: 10 minutes (1 in 2 cycle)
Electrical
- Power Supply: AC 220v-240v 50Hz/60Hz 0.09A
- Noise Level: Below NC27
- Fuse: 500mA
- Medical Classification: Type BF Applied Part
- EMC Standards: BS EN 60601-1 BS5724-1 (CE , FDA , TUV)
