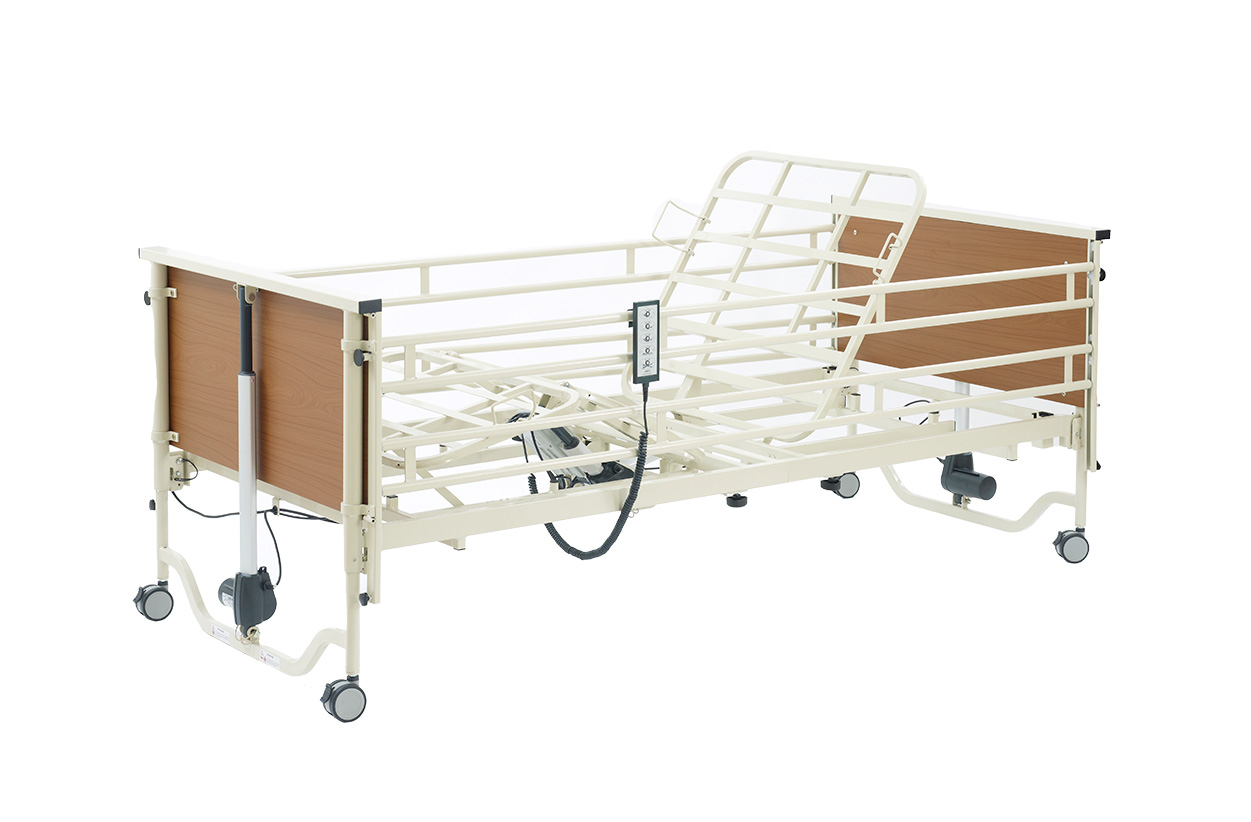

Proteus Eco Community Bed
The Apollo Proteus Eco electric community bed, is easy to use, very competitively priced, and its space saving storage facility is of particular interest to Nursing, Care Home and Community environments. The clearly marked handset is simple to use for both carers and end users alike.
- Easy assembly and installation
- Extendable by 15cm
- Removable Mattress Retainers
- 75cm twin wheel lockable castors
- Four section bed fully electrically operated
- Electric backrest raises to an angle of 72°
- Electric Height adjustment
- Electric knee break
- Electric Trendelenburg and reverse Trendelenburg functions
- Linak electronics to IPx4 Ingress Protection
- Linak individual function lock-out handset
- Easy clean, low maintenance
- Optional bed rails and Extras
- 2 x 2-bar steel full length side rails (for Community use) to extend to the full height of the bed frame
- 3-bar Aluminum wood effect full length side rails
- Bed Lever and lifting pole
- Optional wooden bed end panel covers are easily fitted to provide a more “homely” look
- Optional transport Kit
- Battery back-up option
- Optional extension piece available.
- Accessories available including Bed rails, Grab handle & Bumpers, please see accessories section of website
- Product Code: APH046E
- Max. User Weight Limit: 28 stone / 180 Kg
- Safe Working Load: 34 stone / 220kg
- Bed Dimensions: 202cm x 102cm
- Bed Dimensions: 217cm x 102cm when extended model
- Overall length with wooden Head/Foot Boards: 202cm
- Total weight including side rails and transport kit 76.10 Kg
- Mattress Platform Dimensions: 198cm x 88cm
- Mattress Platform Dimensions: 213cm x 88cm extended
- Lockable handset
- Trendelenberg / reverse Trendelenberg
- Four braked castors
- Max. Height Position: 70.cm
- Lowest Height Position: 30cm
- Warranty: 3 years on metal work and 3 years electrical actuator
- Bed Weight: Heaviest of four sections 20 Kg
